Start a Video Call

People engage longer when they see, hear, and interact with each other. The Agora SDK enables you to embed real-time voice and video interaction in any app, on any device, anywhere.

This page shows the minimum code you need to add video call into your app by using the Agora Video SDK.

Understand the tech

The following figure shows the workflow to integrate into your app in order to add Video Call functionality.

As shown in the figure, the workflow for adding Video Call in your project is as follows:

1. Retrieve a token
   A token is the credential that authenticates a user when your app client joins a channel. In a test or production environment, your app client retrieves tokens from a server in your security infrastructure.

2. Join a channel
   Call joinChannel to create and join a channel. App clients that pass the same channel name join the same channel.

3. Publish and subscribe to audio and video in the channel
   After joining a channel, the app client automatically publishes and subscribes to audio and video in the channel.

For an app client to join a channel, you need the following information:

• The App ID: A randomly generated string provided by Agora for identifying your app. You can get the App ID from Agora Console.
• The user ID: The unique identifier of a user. You need to specify the user ID yourself, and ensure that it is unique in the channel.
• A token: In a test or production environment, your app client retrieves tokens from a server in your security infrastructure. For this page, you use a temporary token with a validity period of 24 hours that you retrieve from Agora Console.
• The channel name: A string that identifies the channel for the video call.

Prerequisites

• Microsoft Visual Studio 2017 or later
• A Windows device running Windows 7 or later
• A valid Agora account. (Sign up for free)
• An active Agora project with an App ID and a temporary token. For details, see Get Started with Agora.
  A computer with access to the internet. If your network has a firewall, follow the instructions in Firewall Requirements.

Set up the development environment

In this section, we will create a Windows project and integrate the SDK into the project.

Create a Windows project

Now, let's build a Windows project from scratch. Skip to Integrate the SDK if a Windows project already exists.

Integrate the SDK

Choose one of the following ways to add agora_rtc_sdk into the project according to the type of your Windows Forms App.

• .net core

  1. In Visual Studio, create a Windows Forms App .net core application.
  2. In Solution Explorer, right click Dependencies. Click Manage Nuget Packages > Browse, input agora_rtc_sdk, select the Latest stable SDK, and then click Install. The SDK is now added to your project.

• .net framework

  1. In Visual Studio, create a Windows Forms App .net framework application.
  2. In Solution Explorer, right click References. Click Manage Nuget Packages > Browse, input agora_rtc_sdk, select the Latest stable SDK, and then click Install. The SDK is now added to your project.

Implement the video call

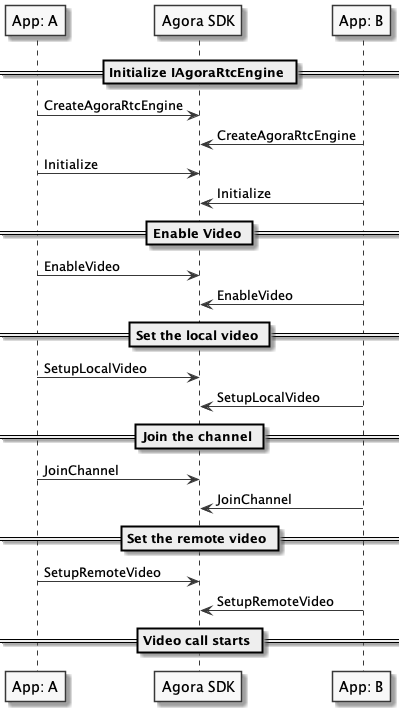

This section introduces how to use the Agora SDK to make a video call. The following figure shows the API call sequence of a basic one-to-one video call.

1. Create the UI

Create the user interface (UI) for the one-to-one video call in your project. Skip to Import the SDK if you already have a UI in your project.

If you are implementing a video call, we recommend adding the following elements into the UI:

• The local video view
• The remote video view
• The end-call button

2. Import the SDK

Add the following line to import the Agora SDK:

using agora.rtc;

3. Inherit IAgoraRtcEngineEventHandler

The C# SDK is developed upon C++. In this step, we create an AgoraRtcEventHandler class from IAgoraRtcEngineEventHandler for managing callback events:

class AgoraRtcEventHandler : IAgoraRtcEngineEventHandler
{
      public AgoraRtcEventHandler()
      {

      }
};

4. Initialize IRtcEngine

Create and initialize the IAgoraRtcEngine object before calling any other Agora APIs.

Call the CreateAgoraRtcEngine and Initialize methods, and pass in the App ID to initialize the IAgoraRtcEngine object.

You can also listen for callback events, such as when the local user joins or leaves the channel.

// Declare variables
IAgoraRtcEngine rtc_engine_ = null;
IAgoraRtcEngineEventHandler event_handler_ = null;

if (null == rtc_engine_)
{
    // Create rtc engine
    rtc_engine_ = AgoraRtcEngine.CreateAgoraRtcEngine();
}

RtcEngineContext context = new RtcEngineContext(appId);
// Initialize rtc engine
int ret = rtc_engine_.Initialize(context);
event_handler_ = new AgoraRtcEventHandler();

// Initialize the engine event handler
rtc_engine_.InitEventHandler(event_handler_);

// Enable video
rtc_engine_.EnableVideo();

5. Set the local video view

After initializing the IAgoraRtcEngine object, set the local video view before joining the channel so that you can see yourself in the call.

VideoCanvas vs = new VideoCanvas((ulong)localWindowId.Handle, RENDER_MODE_TYPE.RENDER_MODE_FIT);
rtc_engine_.SetupLocalVideo(vs);

6. Join a channel

After initializing the IRtcEngine object and setting the local video view, you can call the joinChannel method to join a channel. In this method, set the following parameters:

• channelName: Specify the channel name that you want to join.

• token: Pass a token that identifies the role and privilege of the user. You can set it as one of the following values:

  • A temporary token generated in Console. A temporary token is valid for 24 hours. For details, see Get a Temporary Token. When joining a channel, ensure that the channel name is the same with the one you use to generate the temporary token.
  • A token generated at the server. This applies to scenarios with high-security requirements. For details, see Generate a token from Your Server. When joining a channel, ensure that the channel name and uid is the same with those you use to generate the token.
  • If your project has enabled the app certificate, ensure that you provide a token.
  • Ensure that you do not set token as "".

• uid: ID of the local user that is an integer and should be unique. If you set uid as 0, the SDK assigns a user ID for the local user and returns it in the OnJoinChannelSuccess callback.

  Once the user joins the channel, the user subscribes to the audio and video streams of all the other users in the channel by default, giving rise to usage and billing calculation. If you do not want to subscribe to a specified stream or all remote streams, call the mute methods accordingly.

rtc_engine_.JoinChannel("", "testChannelId","", 0, new ChannelMediaOptions(true, true, true, true));

7. Set the remote video view

In a video call, you should be able to see other users too. This is achieved by calling the SetupRemoteVideo method after joining the channel.

Shortly after a remote user joins the channel, the SDK gets the remote user's ID in the OnUserJoined callback. Call the SetupRemoteVideo method in the callback, and pass in the uid to set the video view of the remote user.

// Call SetupRemoteVideo to set the remote video view
VideoCanvas  vc = new VideoCanvas((ulong)remoteWindowId,
RENDER_MODE_TYPE.RENDER_MODE_FIT, "testChannelId", remoteUid);
rtc_engine_.SetupRemoteVideo(vc);

8. Leave the channel

Call the LeaveChannel method to leave the current call according to your scenario, for example, when the call ends, when you need to close the app, or when your app runs in the background.

rtc_engine_.LeaveChannel();

Run the project

After building the app, follow the steps to add the necessary libraries to the execution path:

• For .netcore 64-bit apps, copy all the libraries under netCore/x86_64.
• For .netframework 32-bit apps, copy all the libraries under netFramework/x86.

Run the project on your Windows device. You can see both the local and remote video views when you successfully start a one-to-one video call in your app.

Reference

Sample project

Agora provides an open-source JoinChannelVideo sample project on GitHub. You can try it out or view the source code.

FAQ

• How can I set the log file?
• How can I solve black screen issues?
• How can I implement call notification in a call application?
