Thread Management

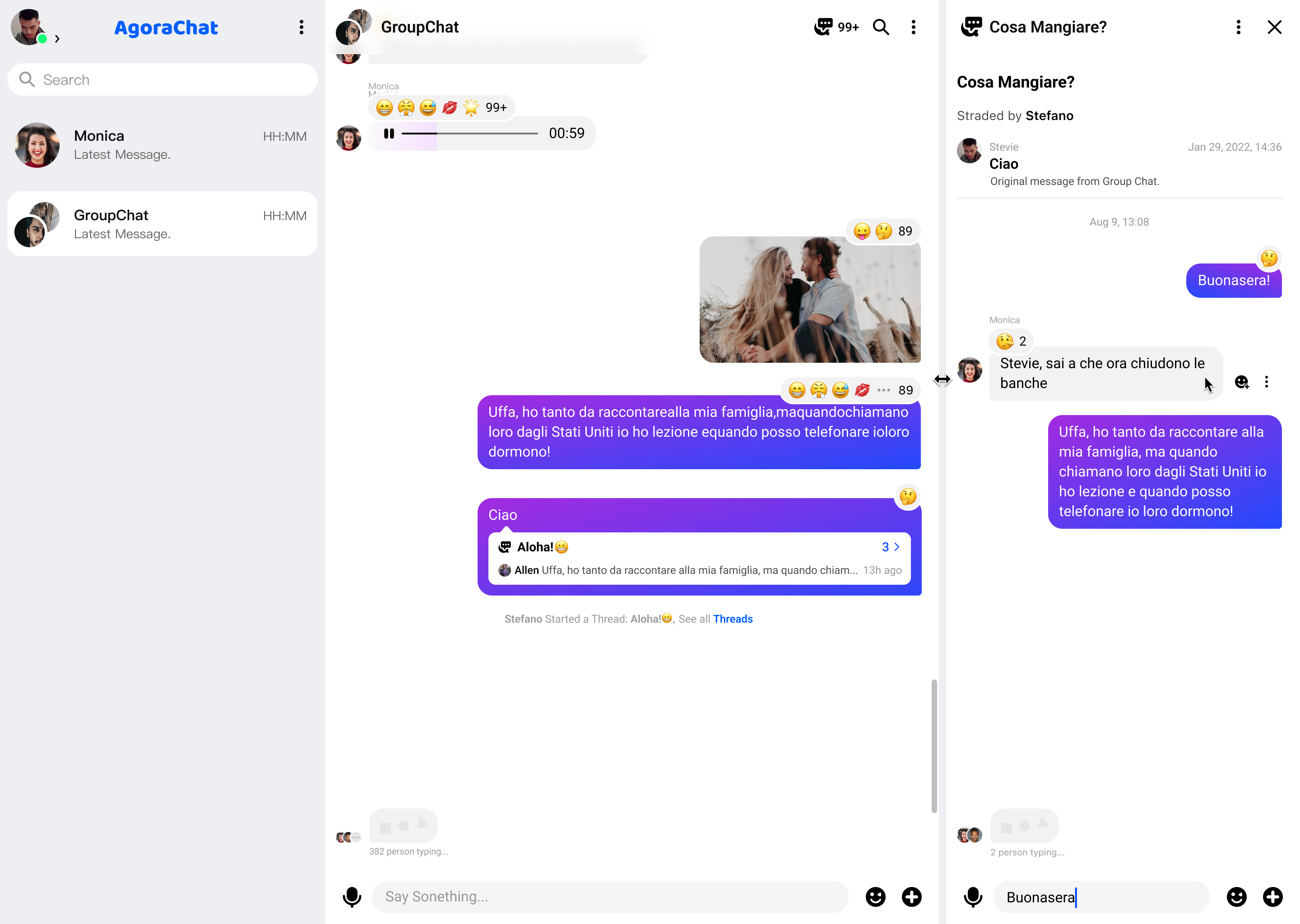

Threads enable users to create a separate conversation from a specific message within a chat group to keep the main chat uncluttered, as shown in the following illustration:

This page shows how to use the Agora Chat SDK to create and manage threads in your app.

Understand the tech

The Agora Chat SDK allows you to implement the following features:

• Create and destroy a thread
• Join and leave a thread
• Remove a member from a thread
• Update the name of a thread
• Retrieve the attributes of a thread
• Retrieve the member list of a thread
• Retrieve a thread list
• Retrieve the latest message from multiple threads
• Listen for thread events

Prerequisites

Before proceeding, ensure that you meet the following requirements:

• You have initialized the Agora Chat SDK. For details, see Get Started with Web.
• You understand the call frequency limit of the Agora Chat APIs supported by different pricing plans as described in Limitations.

Implementation

This section describes how to call the APIs provided by the Agora Chat SDK to implement thread features.

Create a thread

All chat group members can call createChatThread to create a thread from a specific message in a chat group.

Once a thread is created in a chat group, all chat group members receive the onChatThreadChange callback triggered by the create event. In a multi-device scenario, all the other devices receive the onMultiDeviceEvent callback triggered by the chatThreadCreate event.

The following code sample shows how to create a thread in a chat group:

// parentId: The ID of a chat group where a thread resides.
// threadName: The name of a thread. The maximum length of a thread name is 64 characters.
// messageId: The ID of a message, from which a thread is created.
conn.createChatThread({parentId: 'parentId',name: 'threadName',messageId: 'messageId'})
// Listen for the creating thread callback.
conn.addEventHandler('THREAD',{
  onChatThreadChange:(threadMsg) =>{
            console.log(threadMsg)
    },
});

Destroy a thread

Only the chat group owner and admins can call destroyChatThread to disband a thread in a chat group.

Once a thread is disbanded, all chat group members receive the onChatThreadChange callback triggered by the destroy event. In a multi-device scenario, all the other devices receive the onMultiDeviceEvent callback triggered by the chatThreadDestroy event.

The following code sample shows how to destroy a thread:

// chatThreadId: The ID of a thread that you want to destroy.
conn.destroyChatThread({chatThreadId: 'chatThreadId'})
// Listen for the destroying thread callback.
conn.addEventHandler('THREAD',{
  onChatThreadChange:(threadMsg) =>{
            console.log(threadMsg)
    },
});

Join a thread

All chat group members can refer to the following steps to join a thread:

1. Use either of the following two approaches to retrieve the thread ID:

• Retrieve the thread list in a chat group by calling getChatThreads, and locate the ID of the thread that you want to join.
• Retrieve the thread ID within the onChatThreadChange callback that you receive.

2. Call joinChatThread to pass in the thread ID and join the specified thread.

In a multi-device scenario, all the other devices receive the onMultiDeviceEvent callback triggered by the chatThreadJoin event.

The following code sample shows how to join a thread:

// chatThreadId: The ID of a thread that you want to join.
conn.joinChatThread({chatThreadId: 'chatThreadId'});

Leave a thread

All thread members can call leaveChatThread to leave a thread. Once a member leaves a thread, they can no longer receive the thread messages.

In a multi-device scenario, all the other devices receive the onMultiDeviceEvent callback triggered by the chatThreadLeave event.

The following code sample shows how to leave a thread:

// chatThreadId: The ID of a thread that you want to leave.
conn.leaveChatThread({chatThreadId: 'chatThreadId'});

Remove a member from a thread

Only the chat group owner and admins can call removeChatThreadMember to remove the specified member from a thread.

Once a member is removed from a thread, they receive the onChatThreadChange callback triggered by the userRemove event and can no longer receive the thread messages.

The following code sample shows how to remove a member from a thread:

// chatThreadId: The ID of a thread.
// username: The ID of the user to be removed from a thread.
conn.removeChatThreadMember({chatThreadId: 'chatThreadId',username:'username'});

Update the name of a thread

Only the chat group owner, chat group admins, and thread creator can call changeChatThreadName to update a thread name.

Once a thread name is updated, all chat group members receive the onChatThreadChange callback triggered by the update event. In a multi-device scenario, all the other devices receive the onMultiDeviceEvent callback triggered by the chatThreadNameUpdate event.

The following code sample shows how to update a thread name:

// chatThreadId: The ID of a thread.
// name: The updated thread name. The maximum length of a thread name is 64 characters.
conn.changeChatThreadName({chatThreadId: 'chatThreadId',name: 'name'})
// Listen for the updating thread name callback.
conn.addEventHandler('THREAD',{
  onChatThreadChange:(threadMsg) =>{
            console.log(threadMsg)
    },
});

Retrieve the attributes of a thread

All chat group members can call getChatThreadDetail to retrieve the thread attributes from the server.

The following code sample shows how to retrieve the thread attributes:

// chatThreadID: The thread ID.
conn.getChatThreadDetail({chatThreadId: 'chatThreadId'}).then((res)=>{
  console.log(res)
});

Retrieve the member list of a thread

All chat group members can call getChatThreadMembers to retrieve a paginated member list of a thread from the server, as shown in the following code sample:

// chatThreadId: The thread ID.
// pageSize: The maximum number of members to retrieve per page. The range is [1, 50].
// cursor: The position from which to start getting data. Pass in `null` or an empty string at the first call.
conn.getChatThreadMembers({chatThreadId: 'chatThreadId ',pageSize:20,cursor:'cursor'}).then((res)=>{
  console.log(res)
});

Retrieve a thread list

Users can call getJoinedChatThreads to retrieve a paginated list from the server of all the threads they have joined, as shown in the following code sample:

// pageSize: The maximum number of threads to retrieve per page. The range is [1, 50].
// cursor: The position from which to start getting data. Pass in `null` or an empty string at the first call.
conn.getJoinedChatThreads({cursor: 'cursor',pageSize: 20}).then((res)=>{
  console.log(res)
});

Users can call getJoinedChatThreads to retrieve a paginated list from the server of all the threads they have joined in a specified chat group, as shown in the following code sample:

// parentId: The chat group ID.
// pageSize: The maximum number of threads to retrieve per page. The range is [1, 50].
// cursor: The position from which to start getting data. Pass in `null` or an empty string at the first call.
conn.getJoinedChatThreads({parentId: 'parentId',cursor: 'cursor',pageSize: 20}).then((res)=>{
  console.log(res)
});

Users can also call getChatThreads to retrieve a paginated list from the server of all the threads in a specified chat group, as shown in the following code sample:

// parentId: The chat group ID.
// pageSize: The maximum number of threads to retrieve per page. The range is [1, 50].
// cursor: The position from which to start getting data. Pass in `null` or an empty string at the first call.
conn.getChatThreads({parentId: 'parentId', cursor:'cursor', pageSize: 20}).then((res)=>{
  console.log(res)
});

Retrieve the latest message from multiple threads

Users can call getChatThreadLastMessage to retrieve the latest message from multiple threads.

The following code sample shows how to retrieve the latest message from multiple threads:

// chatThreadIds: The thread IDs. You can pass in a maximum of 20 thread IDs.
conn.getChatThreadLastMessage({chatThreadIds: ['chatThreadId1','chatThreadId2']}).then((res)=>{
  console.log(res)
});
